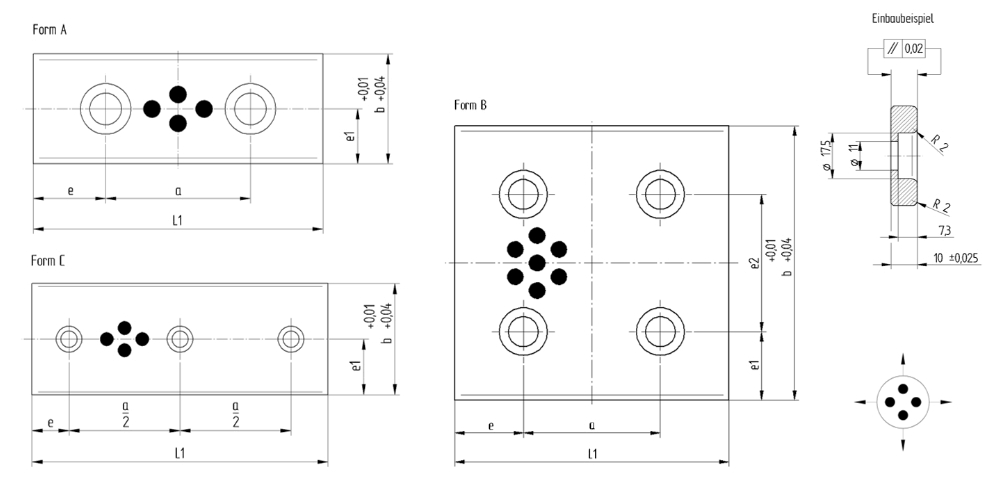

Varianten
| Bestellnummer | L1 | b | e | e1 | Anzahl Bohrungen | a | e2 |
|---|---|---|---|---|---|---|---|
| GLF05.075.075 | 75 | 75 | 15 | 375 | 2 | 45 | - |
| GLF05.038.150 | 150 | 38 | 25 | 19 | 2 | 100 | - |
| GLF05.038.125 | 125 | 38 | 25 | 19 | 2 | 75 | - |
| GLF05.075.150 | 150 | 75 | 25 | 375 | 2 | 100 | - |
| GLF05.058.200 | 200 | 58 | 50 | 29 | 2 | 100 | - |
| GLF05.038.100 | 100 | 38 | 25 | 19 | 2 | 50 | - |
| GLF05.048.100 | 100 | 48 | 25 | 24 | 2 | 50 | - |
| GLF05.028.075 | 75 | 28 | 15 | 14 | 2 | 45 | - |
| GLF05.038.075 | 75 | 38 | 15 | 19 | 2 | 45 | - |
| GLF05.058.100 | 100 | 58 | 25 | 29 | 2 | 50 | - |
| GLF05.048.150 | 150 | 48 | 25 | 24 | 2 | 100 | - |
| GLF05.058.150 | 150 | 58 | 25 | 29 | 2 | 100 | - |
| GLF05.048.075 | 75 | 48 | 15 | 24 | 2 | 45 | - |
| GLF05.058.075 | 75 | 58 | 15 | 29 | 2 | 45 | - |
| GLF05.100.250 | 250 | 100 | 25 | 25 | 4 | 200 | 50 |
| GLF05.075.100 | 100 | 75 | 25 | 375 | 2 | 50 | - |
| GLF05.048.200 | 200 | 48 | 50 | 24 | 2 | 100 | - |
| GLF05.150.150 | 150 | 150 | 25 | 25 | 4 | 100 | 100 |
| GLF05.100.100 | 100 | 100 | 25 | 25 | 4 | 50 | 50 |
| GLF05.058.125 | 125 | 58 | 25 | 29 | 2 | 75 | - |
| GLF05.100.200 | 200 | 100 | 25 | 25 | 4 | 150 | 50 |
| GLF05.075.125 | 125 | 75 | 25 | 375 | 2 | 75 | - |
| GLF05.048.125 | 125 | 48 | 25 | 24 | 2 | 75 | - |
| GLF05.075.200 | 200 | 75 | 25 | 375 | 3 | 150 | - |
| GLF05.028.125 | 125 | 28 | 25 | 14 | 2 | 75 | - |
| GLF05.100.150 | 150 | 100 | 25 | 25 | 4 | 100 | 50 |
| GLF05.150.200 | 250 | 150 | 25 | 25 | 4 | 200 | 100 |
| GLF05.125.150 | 150 | 125 | 25 | 375 | 4 | 100 | 50 |
| GLF05.028.150 | 150 | 28 | 25 | 14 | 2 | 100 | - |
| GLF05.028.100 | 100 | 28 | 25 | 14 | 2 | 50 | - |
| GLF05.100.125 | 125 | 100 | 25 | 25 | 4 | 75 | 50 |
| GLF05.125.250 | 250 | 125 | 25 | 375 | 4 | 200 | 50 |
| GLF05.125.200 | 200 | 125 | 25 | 375 | 4 | 150 | 50 |
